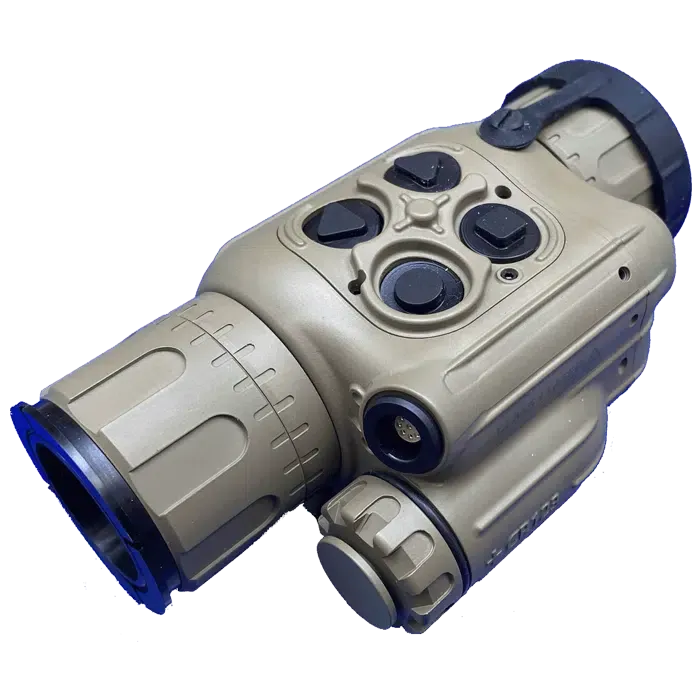

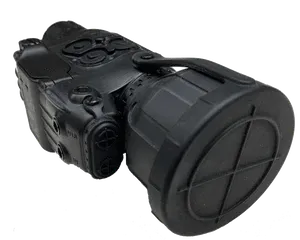

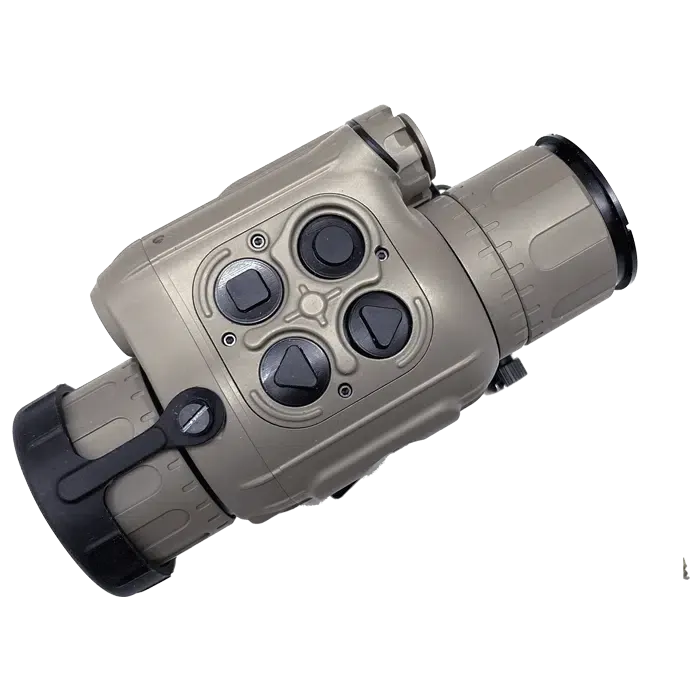

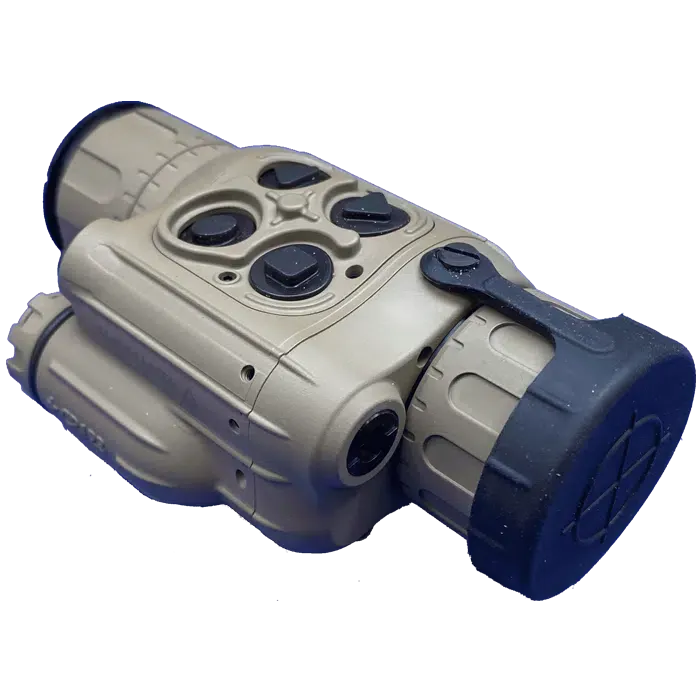

The VooDoo-S is the next generation of thermal imaging system. We’ve kept what you require, improved what you asked for, and added what you’ve always desired. Feature rich, yet easy to use all under 10 oz.

Kit includes:

  • VooDoo-S Scope
  • Soft Case
  • LEMO-BNC Cable (Video Out)
  • LEMO-USB Cable
  • Eye Cup
  • BNC to BNC Coupler
  • 3V CR 123 Battery
  • Quick Reference Guide
  • VooDoo-S Manual
  • Operation/Download Software
  • Wilcox Flip Mount, 1.54" Center Line

Features

Precision and Accuracy

  • VooDoo-S provides accuracy to <0.5 MOA at 100 yards. To further demonstrate VooDoo-S' accuracy, we put 5 rounds of 5.56 through a single 5.56 shell cases to simulated a thermal target @ 25 yards.

Shock Tested

  • VooDoo-S is built tough to withstand any small arms calibers. We tested without failure or bullet impact shift, 500 rounds of 7.62 x 51 NATO through the SCAR-17 Heavy.

AI & ML Capable

  • VooDoo-S has advanced features to include integrated Artifical Intelligence and Machine Learning that no other optic of its size, weight and power offers on the world market.

Mission Profiles and Integrated Communication Capable

  • VooDoo-S is the first micro thermal optic to offer such power and connectivity for our modern warfighters. The ability to load mission specific profiles, integrated communications via secured links and friend or foe designators reducing Blue-on-Blue Safety issues.

Specifications

Sensor 640 X 480 Micro Bolometer
Pitch 12 Micron
Sensitivity < 50 mK
Digital Zoom 0.5x / 1x / 2x / 4x
NUC Customized Solution
MOA < 0.5
Day Time Optic Compatibility Up to 8x
Reticle Types Standard or Custom
Polarity Modes Black Hot/White Hot/White Edge Detect/Black Edge Detect/Dynamic
Digital Magnetic Compass Yes
OLED Type Digital Monochrome
Resolution 640 X 480
Refresh Rate 60 Hz
Eye Relief 23mm
Adjustable Diopter +/- 2
Startup Time < 3 SEC
Battery 1x CR123 (Optional Remote Rail Battery Pack or AC/DC Power Cable)
Battery Runtime < 3 HRS
Weight < 10 oz
Environmental MIL-STD-810G

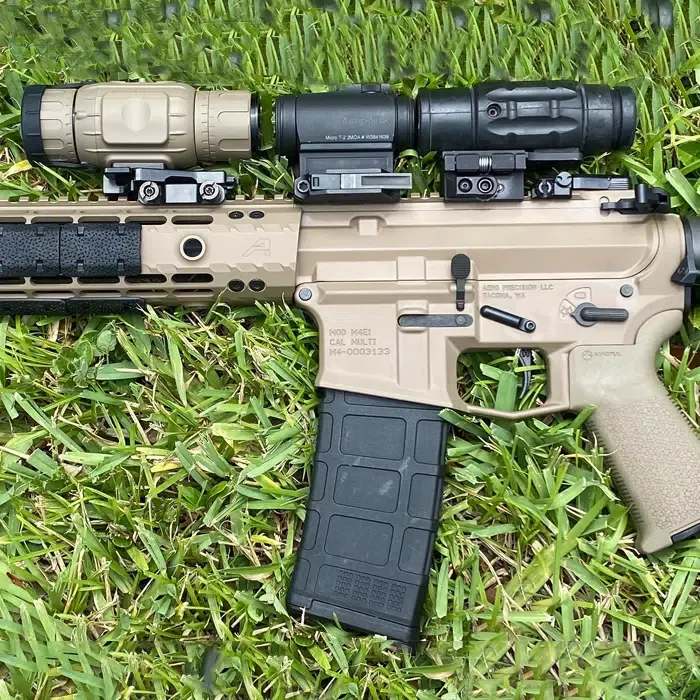

Mount Wilcox Shoe with QD/Flip to Side Mount



Pixels on Target VooDoo-S Multi-Mission Clip-On Thermal Sight Kit

Starting at $15,255.00
Only %1 left
SKU
66-00102-X-Config
